2-1/2” X .120” A.E.F. UNIVERSAL DRIVE TUBE MILL

We are pleased to offer for your consideration the following tube mill: Ref. No. 6181



EQUIPMENT SUMMARY

Hand of Operation:       Left to Right

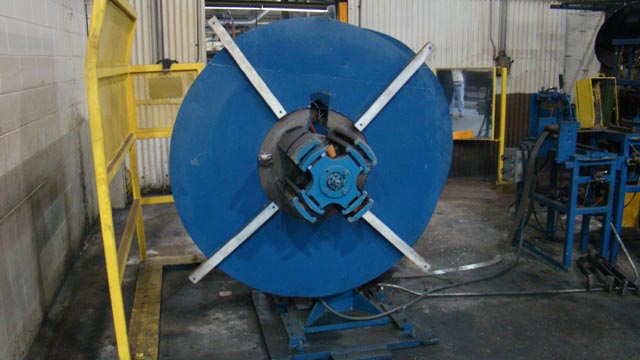

Uncoiler:
Double 6,000 Lbs. Littell
72” Maximum Coil Capacity
I.D. Range – 16” to 21”
Coil Width – 18”
4-Leaf Expansion
Manual Expansion
Air Brakes
Mounted on a Sliding Base with Full Back Plate and Keepers

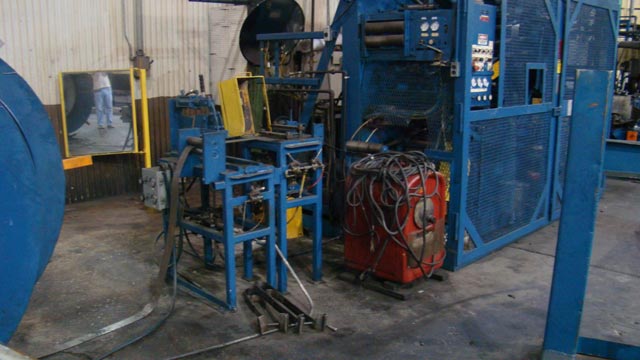

Shear & End Welder:
Portable Type
Pneumatic Clamp & Shear
Manual T.I.G. Welder

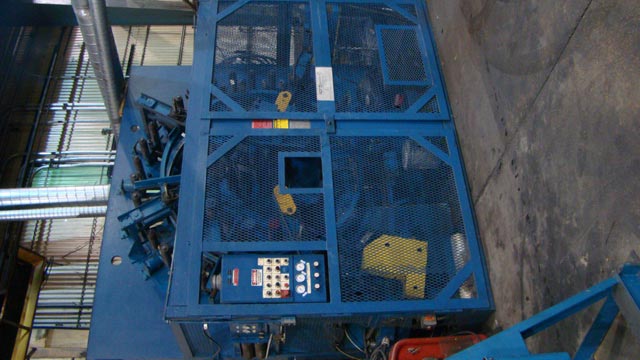

Accumulator:
Kent Floop Model R22 LE

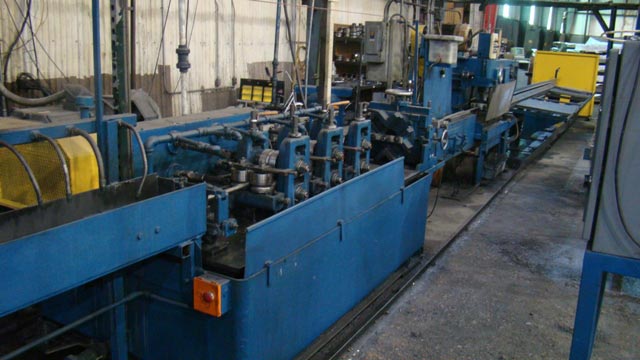

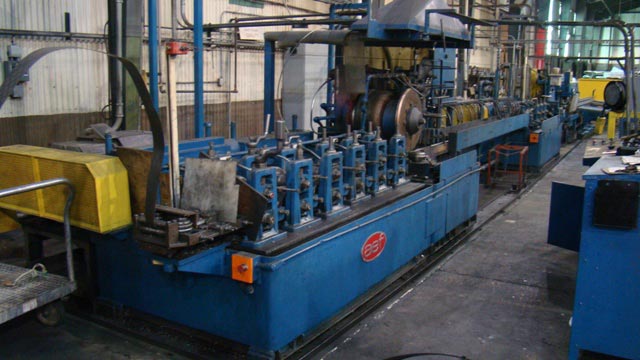

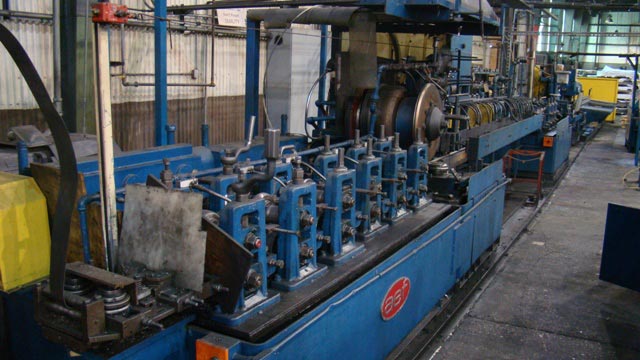

Forming Mill:
1 – Entry Guide Table with Strip Edge Conditioning
3 – A.E.F. Forming Stands (2” Spindles) driven through universal drive shafts by heavy duty      gearboxes
2 – Idle Sideroll Stands
3 – A.E.F. Fin Stands (2” Spindles) driven through universal drive shafts by heavy duty gearboxes
3 – Idle Sideroll Stands

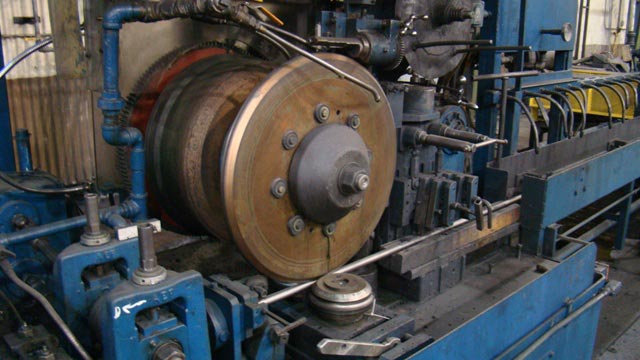

Weld Section:
1 – Adjustable Oval Guide
1 – 2-Roll Weld Box
1 – 175 KVA Welder with Electrodes and Solid State Pillar Power Supply
1 – Tandem Scarfing Station with Quick Release
1 – Powered Bead Winder

Coolant Zone:
1 – Contained Coolant Zone
Full Quench
12-1/2’ Coolant Trough

Sizing Mill:
3 – A.E.F. Sizing Stands (2” Spindles) driven through universal drive shafts by heavy duty          gearboxes
3 – Idle Sideroll Stands
1 – Squaring Turkshead with Full Adjustment

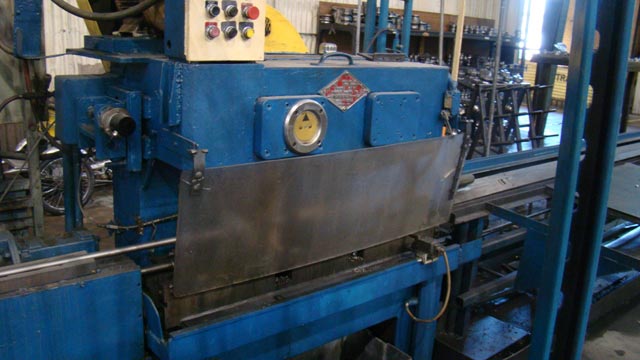

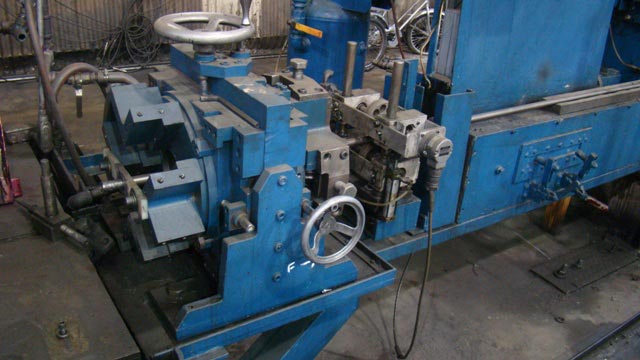

Cut Off:
1 – Alpha FR-8 “Flying Ram” Press
Catalog Capacity Specifications – 3/8” to 2” x .125”
2 – Die Sets (This mill cuts short lengths and holds close tolerances - See Video)

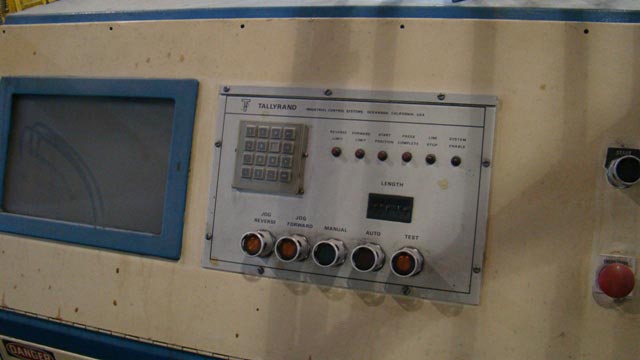

1 – Tallyrand Digital Length Control System and Die Accelerator.

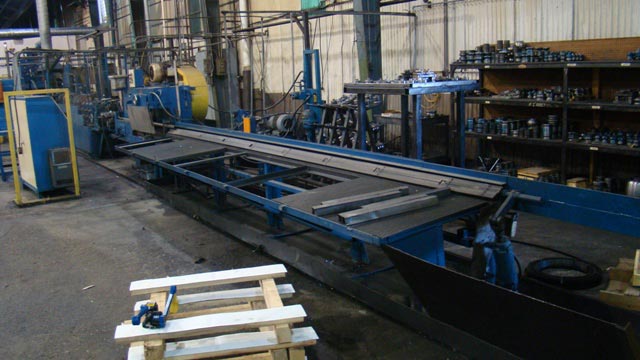

Dump Table:
1 – Single Dump Table

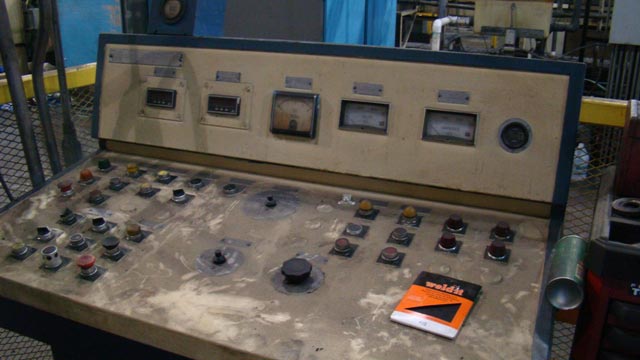

Solid State Power Supply:
Forming Mill - 30 H.P. D.C. Motor
Sizing Mill - 40 H.P. D.C. Motor

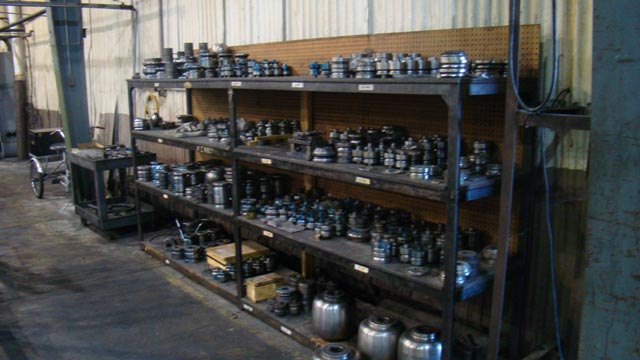

Tooling:      (Not Inventoried)
.750” Square
1” Square (Partial Set)
.840” Round
.875” Round
.925” Round


Condition:  The mill is in good condition.
